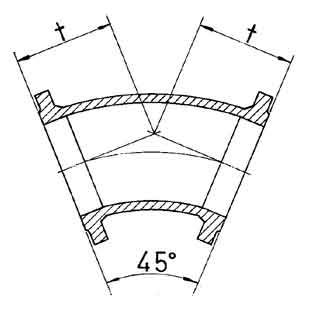

Furação dos flanges PN 10, 16 ou 25 |
|
|
| |
| DN |
Dimensões e
Massas |
| t |
Massas |
| PN 10 |
PN 16 |
PN 25 |
| mm |
kg |
kg |
kg |
| 50 |
100 |
8,0 |
| 75 |
130 |
9,0 |
| 80 |
130 |
10,8 |
| 100 |
140 |
11,4 |
11,5 |
| 150 |
160 |
20,0 |
19,0 |
| 200 |
180 |
29,8 |
29,5 |
30,0 |
| 250 |
350 |
54,0 |
54,0 |
59,0 |
| 300 |
400 |
80,5 |
80,5 |
84,0 |
| 350 |
298 |
74,0 |
80,0 |
97,0 |
| 400 |
324 |
111,3 |
111,3 |
125,0 |
| 450 |
349 |
137,3 |
173,0 |
196,0 |
| 500 |
375 |
228,0 |
250,0 |
262,0 |
| 600 |
426 |
286,0 |
290,0 |
358,0 |
|
|
|
|
|
|
|
