Furação dos Flanges PN 10, 16 ou 25 |
|
|
| |
| DN |
dn |

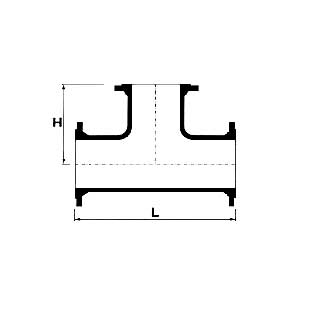

Dimensões e
Massas |
| L |
H |
Massas |
| PN 10 |
PN 16 |
PN 25 |
| mm |
mm |
kg |
kg |
kg |
| 80 |
50 |
320 |
160 |
19,0 |
| 80 |
320 |
165 |
15,8 |
| 100 |
50 |
360 |
160 |
16,0 |
16,0 |
| 80 |
360 |
175 |
19,2 |
19,3 |
| 100 |
360 |
180 |
17,0 |
20,0 |
| 150 |
50 |
440 |
200 |
26,3 |
26,0 |
| 80 |
440 |
205 |
27,4 |
32,0 |
| 100 |
440 |
210 |
28,4 |
31,0 |
| 150 |
440 |
220 |
32,3 |
35,0 |
| 200 |
50 |
520 |
235 |
29,5 |
48,0 |
52,0 |
| 80 |
520 |
235 |
43,5 |
43,5 |
44,0 |
| 100 |
520 |
240 |
37,4 |
41,0 |
45,0 |
| 150 |
520 |
250 |
50,4 |
48,9 |
57,0 |
| 200 |
520 |
260 |
49,2 |
49,1 |
53,0 |
| 250 |
50 |
700 |
265 |
67,0 |
67,0 |
73,0 |
| 80 |
700 |
265 |
65,0 |
69,0 |
75,0 |
| 100 |
700 |
275 |
61,2 |
67,0 |
75,0 |
| 200 |
700 |
325 |
88,2 |
73,0 |
82,0 |
| 250 |
700 |
350 |
80,0 |
80,0 |
91,0 |
| 300 |
100 |
800 |
300 |
88,7 |
92,0 |
103,0 |
| 200 |
800 |
350 |
105,6 |
103,0 |
112,0 |
| 300 |
800 |
400 |
114,2 |
119,0 |
134,0 |
| 350 |
100 |
850 |
325 |
135,7 |
118,0 |
135,0 |
| 200 |
850 |
325 |
144,5 |
123,0 |
142,0 |
| 300 |
850 |
425 |
119,0 |
139,0 |
160,0 |
| 350 |
850 |
425 |
153,0 |
148,0 |
173,0 |
| 400 |
100 |
900 |
350 |
131,4 |
149,0 |
172,0 |
| 200 |
900 |
350 |
136,9 |
153,0 |
178,0 |
| 300 |
900 |
450 |
159,0 |
171,0 |
198,0 |
| 400 |
900 |
450 |
179,2 |
206,1 |
223,0 |
| 450 |
100 |
950 |
375 |
173,0 |
182,0 |
212,0 |
| 200 |
950 |
375 |
180,0 |
247,0 |
220,0 |
| 300 |
950 |
475 |
187,0 |
280,0 |
230,0 |
| 400 |
950 |
475 |
202,0 |
225,0 |
259,0 |
| 450 |
950 |
475 |
202,0 |
277,0 |
264,0 |
| 500 |
100 |
1000 |
400 |
218,0 |
251,0 |
259,0 |
| 200 |
1000 |
400 |
226,0 |
266,0 |
265,0 |
| 300 |
1000 |
500 |
252,0 |
249,0 |
278,0 |
| 400 |
1000 |
500 |
259,0 |
296,0 |
305,0 |
| 500 |
1000 |
500 |
274,0 |
320,0 |
329,0 |
| 600 |
100 |
1100 |
450 |
281,0 |
326,0 |
390,0 |
| 200 |
1100 |
450 |
326,0 |
389,0 |
376,0 |
| 300 |
1100 |
550 |
355,0 |
407,0 |
424,0 |
| 400 |
1100 |
550 |
380,0 |
423,0 |
414,0 |
| 500 |
1100 |
550 |
391,0 |
380,0 |
420,0 |
| 600 |
1100 |
550 |
408,0 |
490,0 |
538,0 |
| 700 |
200 |
650 |
525 |
334,0 |
366,0 |
406,0 |
| 400 |
870 |
555 |
378,0 |
391,0 |
456,0 |
|
|
|
|
|
|
|
|
|
